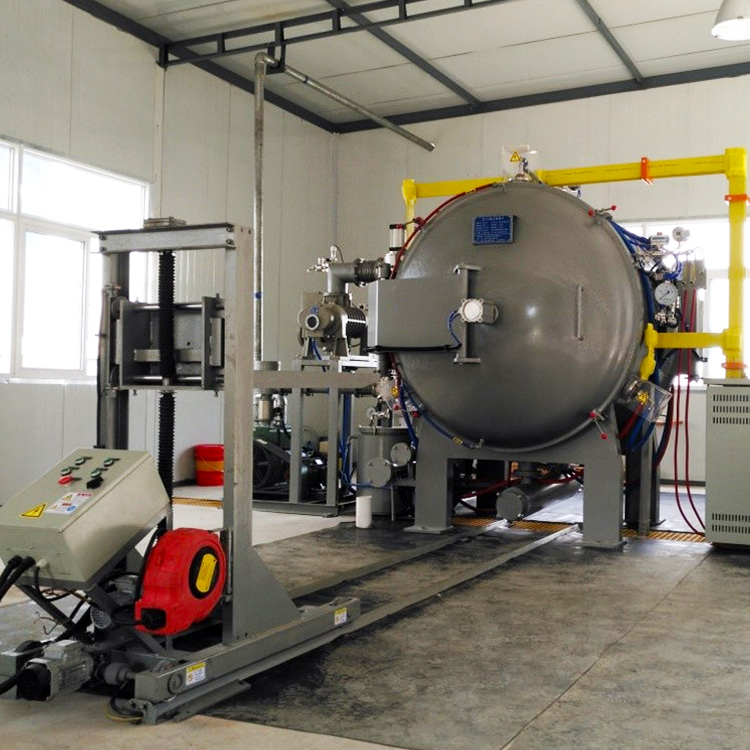

Vacuum Sintering Furnace

1. Application

It is mainly used for sintering metal and nonmetal materials ,such as cemented carbide, copper- tungsten alloy, AlNiCo magnet, NdFeB, carbon fiber graphitization, carbon composite materials, silicon carbide and so on

2. Function：

2.1 Sintering material in vacuum or atmosphere under 3000℃.

2.2 Temperature can be adjusted and be kept at one stable level.

3. Specifications

3.1 Work temperature: 1600 -2200℃±10℃, Max temperature: 2800℃

3.2 Ultimate vacuum:according to technology requirements

3.3 Press rising rate:3Pa/h

3.4 Wokspace size : Dia100mm~Dia1000mm×H1500mm( according to user’s requirement)
